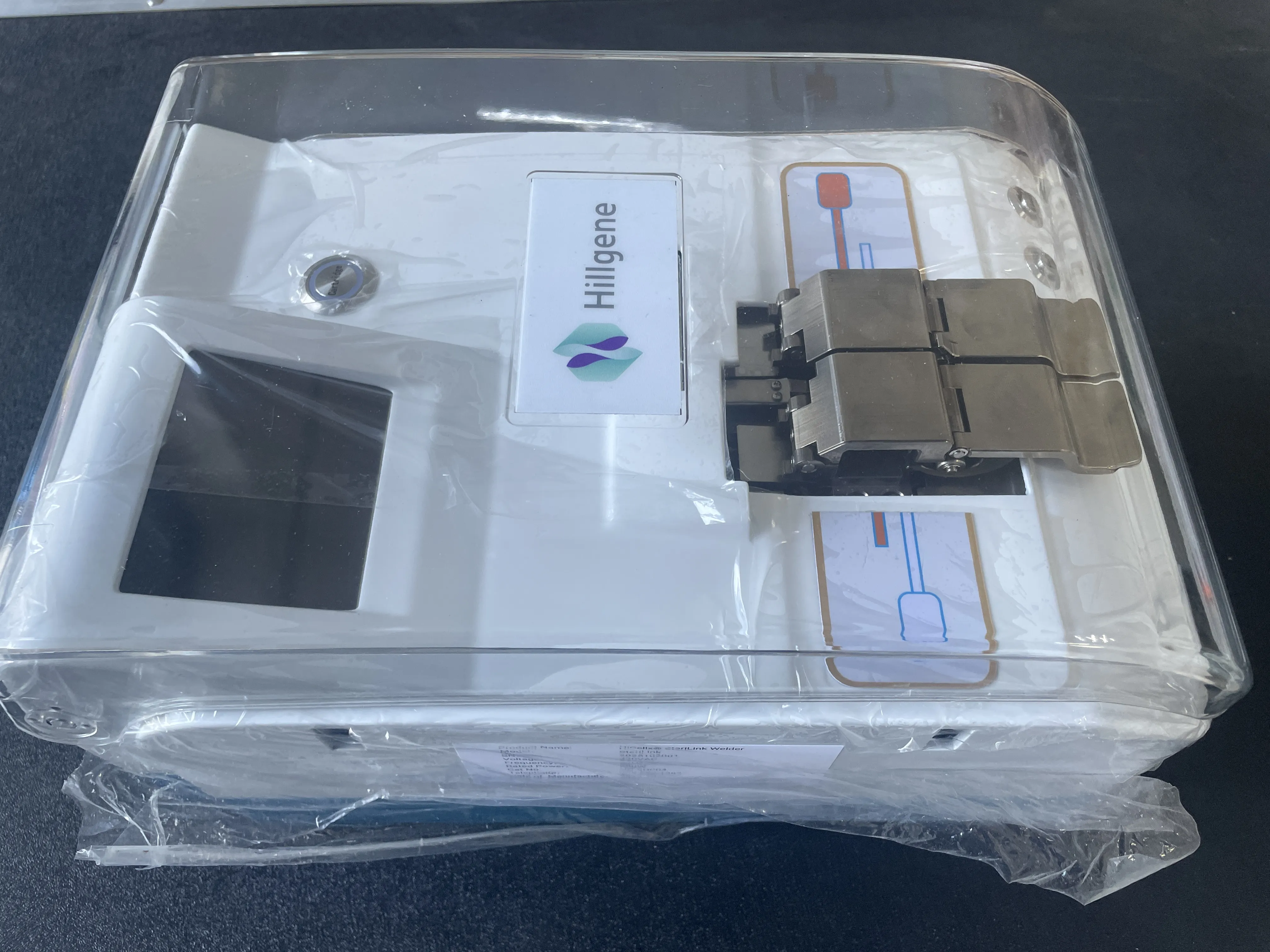

The HiCellx® Sterilink Welder is used in the field of biopharmaceuticals (CGT field), blood stations and hospitals. lt can be used with tabletop equipment such as wave shakers and glass reactor bottles, or with single-use consumables such as cel-permeable culture bottles and cell culture bags to achieve aseptic production for customers, With domestic manufacturing and excellent service, customers can achieve faster and better cost reduction and efficiency improvement.
For Research Use Only.
.webp "origin(5)")
Fast self-checkingspeed: The entire self-checking process is completed within 30 seconds from startup to completion.
Easy to carry: The equipment weighs 5.5kg and is equipped with a portable handle. lt can be easily transported and quickly switched between experimental areas.
Available at any time: It can be connected to PVC pipelines with an outer diameter of 3.9-4.5mm and an inner diameter of 2.9-4.1mm without changing the pipe support function.
Short takeover time, automatic reset: The entire takeover process takes about 30 seconds from start to completion; open the pressure plate, remove the pipeline, and the equipment completes the reset after 5 seconds.
Component mixing
Leukocyte removal
Pathogen inactivation
Component packaging
Quality control sampling
Cell washing and freezing
Turn on the power and after the device completes self-checking, open the pressure plate and place the PVC pipeline that needs to be connected.
Press the left pressure plate first, then the right pressure plate, and then press the start button(green button) to begin the coupling process.
Check the effectiveness of the coupling position by kneading the position with fingertips to ensure theinternal passage of the pipeline.
| ltem | Specification |
| Power supply | 220VAC, 50Hz 200VA |
| Time | 30 S |
| Tube diameter | OD: 3.9 to 4.5 mm (0.15 to 0.18 in) |
Sealing/welding capacity | Wet-to-dry Wet-to-wet Dry-to-dry |
| Blade material | T2 copper |
| Size | 350mm×200mm×200mm |
| Weight | 5.3Kg |
| Operating environment | 5°C~40°C; ≤60%RH |
Product Name | Product Code | Translated |
| HiCellx® SteriLink Welder | HG-EQ004-001 | unit |
| Blade | HG-EQ004-002 | 100 pieces per box |
| IOQ Verification Service | HG-EQ004-003 | 1 time per unit |
| Maintenance and Repair Service | HG-EQ004-004 | 1 time per unit |
