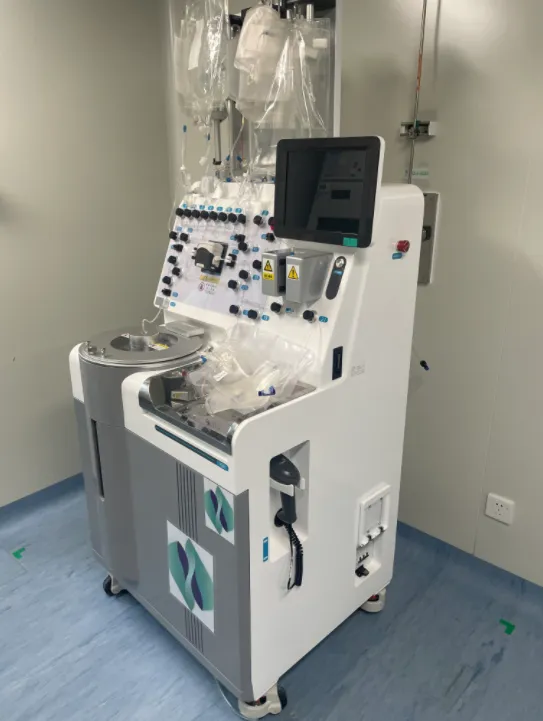

With the rapid development of the Cell and Gene Therapy(CGT) industry, achieving a stable and efficient cell therapy drug production process has become a new challenge. As an efficient. precise and standardized cell processing tool, the HiCellx® ProCombo Workstation is able to meet the different application scenarios and research needs of stem cell therapy, immune cell therapy and cell storage.
For Research Use Only.
Standardization: Standardized procedures to complete the sorting process
Automation: Fully automated completion of complex cell processing procedures
Multifunctionality: Multiple programs and tubing sets to meet different production requirements
Safe: Unique aseptic closed tube set system
Olsolation and purification of stem cells from UCB, BM, adipose tissue, etc.
Purification ofimmune cells.
Concentration, washing, purification.
Other customized cell processing needs.

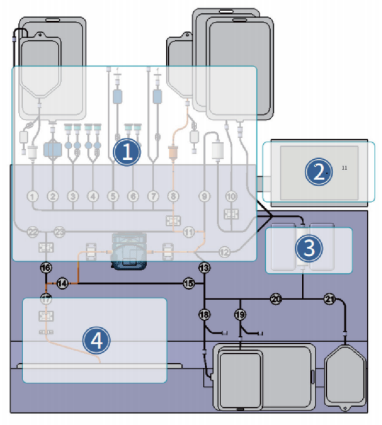

01 Sample Loading Module
Adequate interfaces are reserved for aseptic tubing.
The interfaces are equipped with 0.22 um filter devices.
The transfer bag incorporates cell filtration system and a Qc sampling port.
02 Operating system
12.111 TFT LCD touch screen
Microsoft Windows 10 and above, Linux
03 Magnetic Sorting Module
Robust nanomagnetic separation technology
Maximum cell processing capacity is 1.2x1011
04 Centrifugation Module
Automated magnetic bead labeling
Cell centrifugation and washing
Initial volume range from 100 mL to 50 L
| Performance | Content | Parameter Description |
| Appearance | Size | 90 x 70 x 160 cm (W x D x H) |
| Weight | 240 kg | |
| Power supply | 200~235 VAC,50/60 Hz | |
| Power Consumption | 2.74 KW | |
| Interface | 2 USB 3.0 ports, 1000 Mbit/s Ethernet interface | |
| Hardware | Fluid Delivery System | Clamp Valve, Peristaltic Pump, Pump Speed 2 to 600 mL/min |
| Cell Sorting Module | Magnetic Separation Module | |
| Display | 12.111 TFT LCD Touch screen | |
| Centrifuge Chamber | Up to 2000 rpm in speed and 600g in centrifugal force | |
| Sensor | Pressure Sensor, Liquid Sensor, Color Sensor | |
| Hook | 6 hooks, each supporting up to 5L of liquid. | |
| Barcode Scanner | Standard Features | |
| Software | Operating System | Microsoft Windows 10 and above, linux |
| Functionality | Features multiple preset programs and the ability to customize additional programs as needed | |
| Fluidic Tubing | Disposable,fullyenclosed consumables to minimize the risk of contamination | |
| Magnetic cell sorting | Initial Material | Apheresis Blood, PBMC, Bone Marrow, Whole Blood, etc |
| Initial Volume | The initial volume varies from 100 mL to 50 L based on the program selected | |
| Cell Processing Quantity | The cell quantity processed varies by program, peaking at 1.2x1011 |
